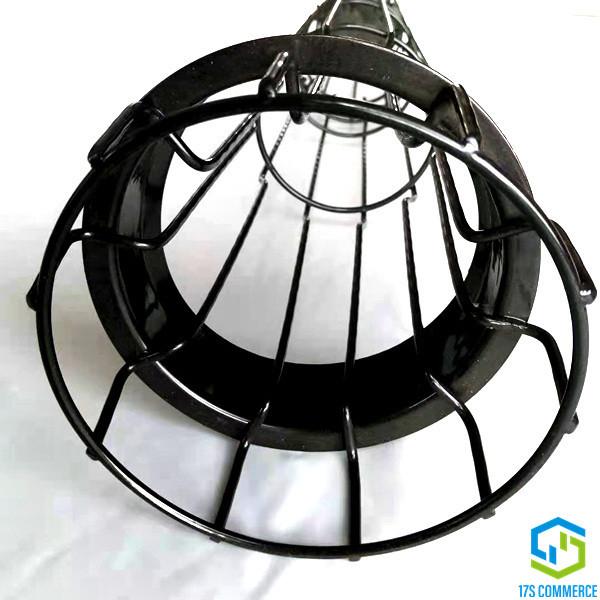

Enlarged Ring Top Cap Carbon Steel Star Filter Cages

Product Categories

zhangjiagang 17s commerce co.,ltd

Contact Now

Brand Name : 17s

Model Number : 17SRC001

Certification : ISO

Place of Origin : China

MOQ : negotiable

Price : negotiable

Supply Ability : TBD

Delivery Time : TBD

Packaging Details : steel crates

Material : Carbon Steel

Finish Treatment : Silicon Coating

Supporting Ring : Round Ring

Diameter : Customized

Vertical Wires No. : 8 To 24 PCS

Top Cap : Enlarged Ring

Vertical Wire Thickness : 3-4mm

Contact Now

Enlarged Ring Top Cap Star Filter Cage Crimped Wire Joint Cage Silicon Coating Round Filter Cage

Specification

Style	round filter cage special top cap
Item	17SRC001
Material	Q235 wild steel
Cage Diameter	120-250		mm
Vertical Wire	Number	8-24	pcs
Vertical Wire	Thickness	3-5	mm
Support Ring	Type	round
	Thickness	3.5-6	mm
	Distance	150-350	mm
Length	Customized		mm
Structure	one section or two sections
Joining Method	Crimped wire / finger joint
Top Cap	Type	Enlarged ring
	Size	based on cage diameter	mm
	Thickness	4-6	mm
	Fix	weld to cage
Venturi	Size	no	mm
	Thickness	no	mm
	Fix	weld to top cap
Bottom Cap	Type	punch plate
	Size	per cage diamter to adjust	mm
	Thickness	1	mm
	Fix	weld to cage
Finishing	Type	silicon coating
	Thickness	90-140	um
	Color	black
Pack	steel crate

Production Flow

Enlarged Ring Top Cap Carbon Steel Star Filter Cages
